  • 24 step fully remote discrete volume control for great convenience.  Volume control uses the shunt method with only a single Tantalum resistor on signal path to retain best natural sound



  • can be configured as a volume control integrated amplifier or as a direct input power amplifier.  Both can accept RCA & XLR inputs



  • Push-pull circuit with deep class A bias to get the sonic benefits of class A operation and yet maintain a fairly good power output efficiency



  • special auto bias circuitry without the need for frequent bias adjustment



  • driver stage through excellent low distortion cathode coupled phase-splitter circuit



  • custom designed wideband output transformer for Prelude, with the use of double C core transformer for the Sonata



  • German made Mundorf silver oil coupling capacitor for Prelude, ultimate performance silver gold oil for Sonata



  • extra high current power supply transformer with high grade grain oriented silicon steel laminate. Ultra fast rectifier coupling to Mundorf film capacitor and 4-pole electrolytic capacitor to enhancing extension for both low and high frequencies




  Specifications

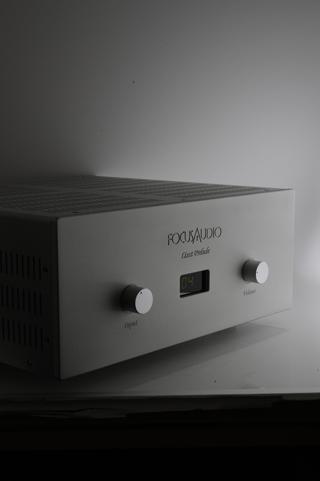

Liszt Prelude





Output Power

32 W ( 4, 8 ohms)

Frequency Response

10 Hz100 kHz ( 0.5dB, -3dB, 1W)

THD

0.01% (1 kHz, 1W)

Signal/Noise Ratio

-95 dB (32W)

Input impedance

50 k Ohms

Inputs

Line inputs 3 x RCA, 1 x XLR



Direct inputs 1 x RCA, 1 x XLR

Vacuum tubes

4 x 6CA7/EL34, 2 x 12AU7, 1 x 12AX7

Size

17.5W x 7H x 16D

Weight

48 lbs net

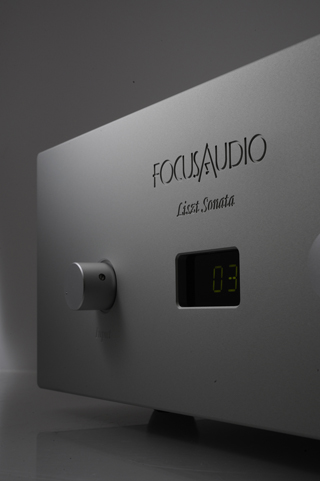

Liszt Sonata





Output Power

35 W ( 4, 8 ohms)

Frequency Response

10 Hz100 kHz ( 0.5dB, -3dB, 1W)

THD

0.01% (1 kHz, 1W)

Signal/Noise Ratio

-95 dB (35W)

Input impedance

50 k Ohms

Inputs

Line inputs 3 x RCA, 1 x XLR



Direct inputs 1 x RCA, 1 x XLR

Vacuum tubes

4 x 6CA7/EL34, 2 x 12AU7, 1 x 12AX7

Size

17.5W x 7H x 16D

Weight

52 lbs net
