Never being the one to rest on her laurels, Focus Audio continuously strives to improve its design and manufacture to an extreme standard by using unique evaluation and assurance process formulated by the Focus Audio project group. And the result often exceeds our own expectations in almost every area of sonic performance:

• Refined musicality

• Transparency

• Dynamics

• Transient speed

• Timbrel accuracy

• Realistic soundstage presentation

Truly successful design can reach its full potential only through the faithful translation to the manufacturing process. At Focus Audio workshop, each engineering process is faithfully reproduced with fastidious care and attention to detail. From the woodworking shop to dedicated paint booth, the final assembly and quality control, each manufacturing process is continuously refined to a higher standard.

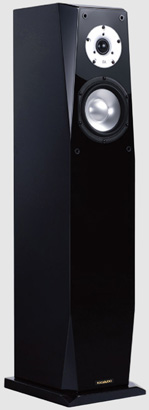

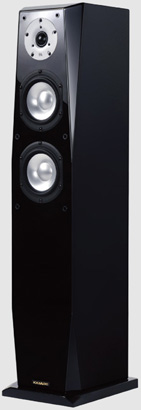

In meeting the extreme criteria, Focus Audio’s objective is to create a loudspeaker at high-end quality that will match, or even surpass, the competition. Our designs start with an intended space in the listener's home.  For smaller spaces, the Models FS6 SE and FS7 SE can tantalize even the most demanding and critical of listeners with stunning transparency, neutrality, musicality and lightning speed.  In a more spacious listening environment, the Model FS8 SE has the uncanny ability, on well-made recordings, to recreate the life and scale of the original musical performance. This unique level of performance and design perfection is available all throughout the Signature Series. For those who immensely enjoying high definition home theater reproduction, the FSC1 SE center is a perfect match to the above speaker models.

The very best materials and ultra high quality grade components are used to create the Signature Series:

Cabinets

Focus Audio cabinets are sculptured specifically to enhance imaging and are constructed with both premium grade 1” MDF and on the FS7 SE,

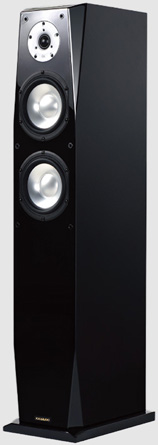

FS8 SE and FS9 SE models up to 2” thick MDF for the front baffles. The combination of varying thicknesses provides excellent acoustical properties.

Finely handcrafted cabinets are finished with premium grade real wood veneer covering with multi- coated high gloss piano lacquer providing the elegance of fine furniture.

Floor-standing models are supplied with hardened steel spikes for proper mechanical grounding.

Drivers

Drivers are custom made by renowned Danish driver manufacturer to Focus Audio’s exacting specifications for the coming era of non compressed high definition audio reproduction thanks to the newly introduction of Blue ray and HD DVD formats.

Innovative dome tweeters are air cooled with a non-resonant chamber-damping that provides a smooth and detailed response beyond 25 kHz, enabling low distortion even under high-powered operation.

Long throw type woofers with aluminum material driver cones are chosen for their excellent reproduction of naturally rich, dynamic and musical sounding characteristics.

Crossovers

Focus Audio designed crossovers are optimized using the most advanced computer-aided programs and are then fine-tuned through painstaking auditioning. The end result is a smooth transition between drivers, wide and uniform dispersion of the sound and excellent power handling.

Each crossover is made of the highest quality components; non inductive wire wound precision resistors, ultra fast Polypropylene capacitors, ultra pure copper induction coils and internal wiring, hand assembled circuitry with silver solder and terminated with heavy gauge, gold plated binding posts.

Quality control

Drivers and crossover components are computer tested and matched to ensure that they meet Focus Audio's stringent requirements.

To proudly display the Focus Audio Signature badge, each loudspeaker must be subject to a complete quality assurance program and to perform as close to the original model as humanely possible.

Frequency Response

45 Hz - 25 kHz ± 3dB

Frequency Response

45 Hz - 25 kHz ± 3dB

1I

Sensitivity

91 dB/1 Watt/1 meter

Sensitivity

86 dB/1 Watt/1 meter

I

Impedance

Nominal 4 Ohms

Impedance

Nominal 8 Ohms

I

Recommended Power

20 - 300 Watts per channel

Recommended Power

20 - 200 Watts per channel

I

Drivers

One - 1" tweeter

Drivers

One - 1" tweeter

I

Two - 5-1/2" woofers

One - 5-1/2" woofer

I

Termination

Gold plated binding posts

Termination

Gold plated binding posts

I

Size

7.5" x 22.5" x 10"  (H x W x D)

Size

13" x 7" x 10"  (H x W x D)

I

Weight

Net weight 28 lbs each

Weight

Net weight 19 lbs each
